DELTA®-FASSADE 50 PLUS / DELTA®-FASSADE 50

Facade membrane for wide variations of building constructions. Watertight. Extremely tear-resistant.
The DELTA FASSADE meets the requirements of the Euro fire class e B-s1, d0.s1, d0.

Diffusion-open, permanent UV-resistant insulation protection membrane with adhesive zones (PLUS) on both edges.

DELTA®-FASSADE 50 PLUS / DELTA®-FASSADE 50 is suitable for open facades with up to 50 mm wide joints and a maximum joint proportion of 50% of the surface. The waterproof acrylate coating and permanent UV resistance ensure safe protection from the outside, the Sd value of only approx. 0.02 m ensures vapor permeability from the inside. This guarantees the functional reliability of the structure and permanently dry thermal insulation.

DELTA®-FASSADE 50 PLUS / DELTA®-FASSADE 50 is equally suitable for metal and timber frame constructions.

Intelligent DELTA® technologies for a UV-stable, durable and energetic facade

All DELTA ® -FACADE formwork and underlays are based on intelligent technologies. They are the result of years of experience, continuous development and the highest quality standards. It is our aim to offer the best possible solution for the respective requirement. In the field of façade construction in particular, the requirements today are extremely complex. Intelligent answers are required.

Active-Membrane–System

The intelligent DELTA® membrane technology protects the buildings like a skin.
This membrane technology ensures that the entire of construction remains permanently dry. It protects the construction like a second skin.

DELTA®-BiCo Technology

The cloth layers for our DELTA® sarking sheets are made with the latest BiCo core-mantle technology. Cloth backings ensure the mechanical stability – or tear strength – of all sheets.

DELTA®- FASSADE 50 PLUS / DELTA®-FASSADE 50

Overview of the most important advantages

Unique membrane technology

Waterproof

Windproof

Breathable

UV protection

Long-term protection against aging

Robust

DELTA®- Bico technology

Secure against driving rain

Made in Germany

Application DELTA®- FASSADE 50 PLUS / DELTA®-FASSADE 50

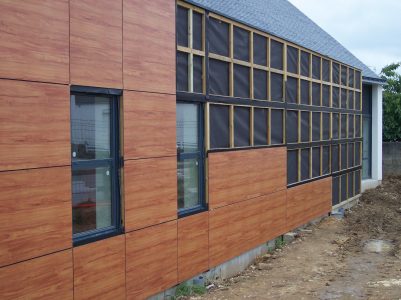

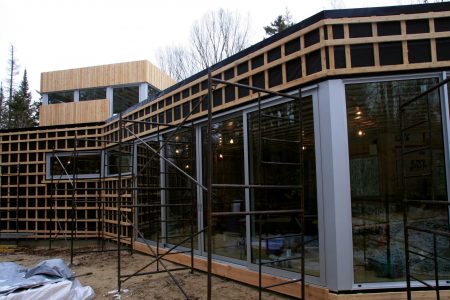

Ventilated cladding.

Use as a rain screen behind ventilated cladding with open (or closed) joints in contact with the insulation.
The openwork cladding must not have joints greater than 50 mm and their proportion must not exceed 50% of the total surface.
Gluing of overlaps and side fittings is recommended, in particular for applications behind openwork facades (DELTA®-TAPE FAS).

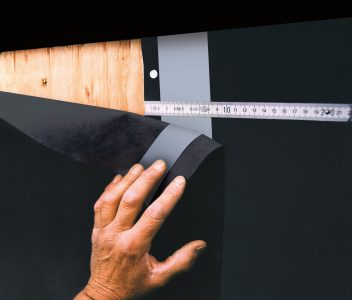

The longitudinal overlaps are glued using the integrated self-adhesive strips (PLUS version).

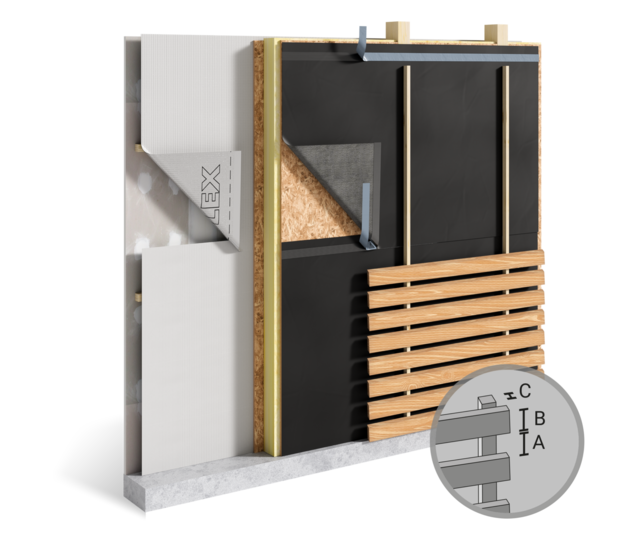

Joints ( A ) ≤ 50 mm
Joint proportion ≤ 50% [= A / ( A + B )]
Vertical batten thickness C ≥ 20 mm

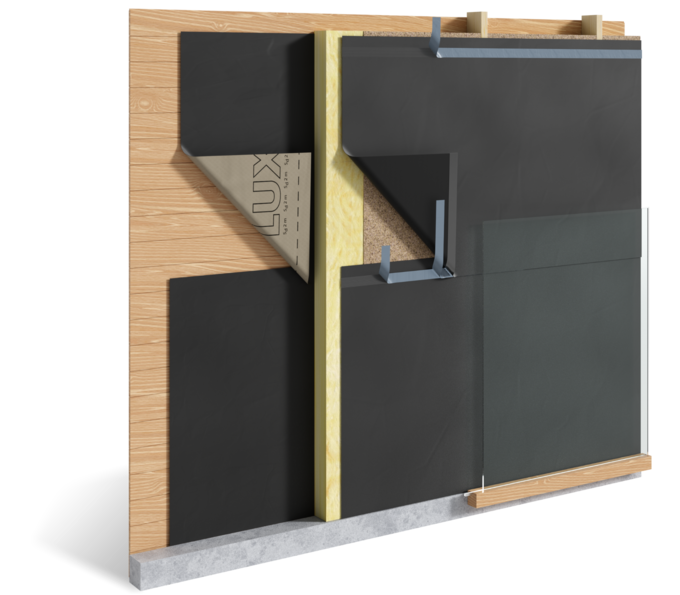

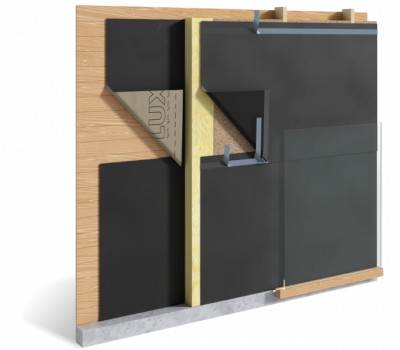

Use as a rain screen behind a glazed facade covering.
In the case of a glazed facade cladding, the UV radiation passing through must not exceed 10% of the incident radiation.
The longitudinal overlaps are glued using the integrated self-adhesive strips (PLUS version).

Technical data:

DELTA® FASSADE 50 PLUS / DELTA®-FASSADE 50

Material	Specially coated, highly tear-resistant polyester fleece with a waterproof plastic coating and adhesive zones on both edges. DELTA®-FASSADE 50 without adhesive zones.
Application	DELTA®-FASSADE 20 PLUS for open facades with up to 50 mm wide joints and a maximum joint proportion of 50% of the surface.
ZVDH	Class UDB-A / USB-A (highest class)
Fire resistance	B-s1, d0 according to EN 13501-2
Tear strength	approx. 370/270 N / 5 cm, EN 12311-,
Water tightness	Class W 1, EN 13859-1 + 2 before and after aging
Sd value	approx. 0,02 m, EN ISO 12572
Diffusion resistance	approx. 0.028 m² hPa/mg
Service Temperature range	-40 °C to +120 °C
Short-term maximum temperature load of the material	+150 °C
Resistance against driving rain	Pass in the driving-rain test for waterproofing and soft sheathing, TU Berlin
Increased requirement for aging	Passed, ZVDH product data sheet table 1
Weight	approx. 270 g/m²
Roll weight	approx. 20 kg
Roll size	50 m x 1,50 m
