DELTA®-NEOVAP 20

A balanced interior climate and reliable safety from moisture

DELTA®-LUXX allows pitched roofs to ‘breathe’ and helps trapped moisture to dry out more quickly even in the inward direction. Through its Sd value of c. 2m DELTA®-LUXX regulates moisture. In combination with any breathable DELTA® sarking sheets, DELTA®-LUXX offers a cosy atmosphere and safety from inside and outside.

It reduces energy consumption by stopping draughts from the interior. The sheet contributes towards protecting the environment: breathable, unvented roof constructions do not require chemical wood protection (DIN 68 800). The sheet complies with the requirements of DIN 4108 and the ZVDH Code.

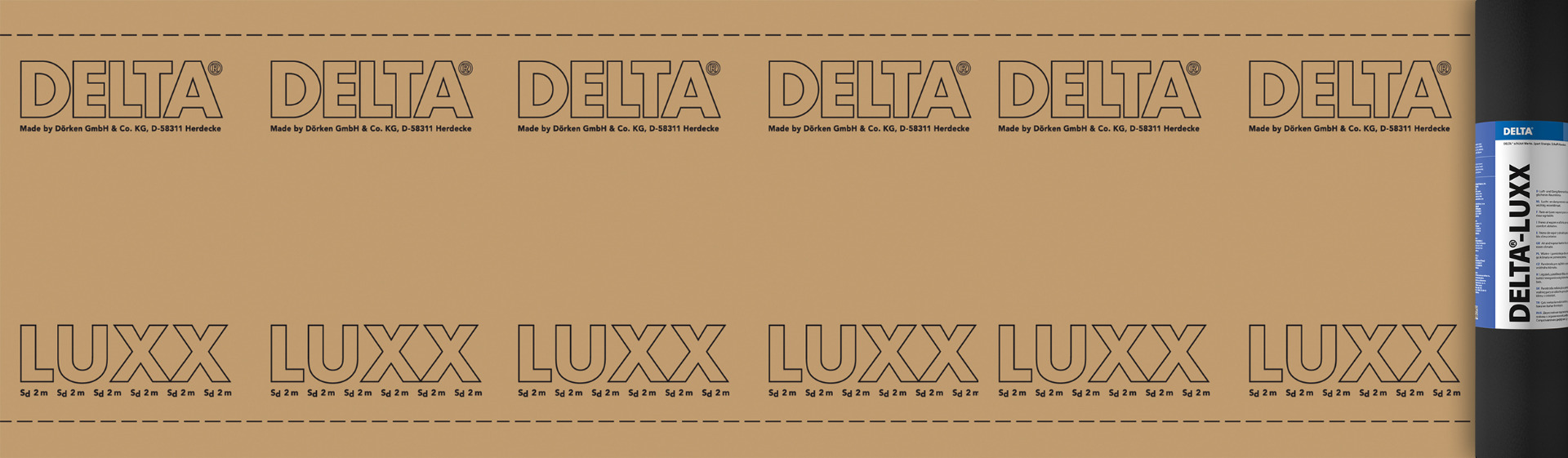

DELTA®-LUXX

Overview of the most important advantages

Allows drying inside

Waterproof

Airtight

Long-term protection against aging

Made in Germany

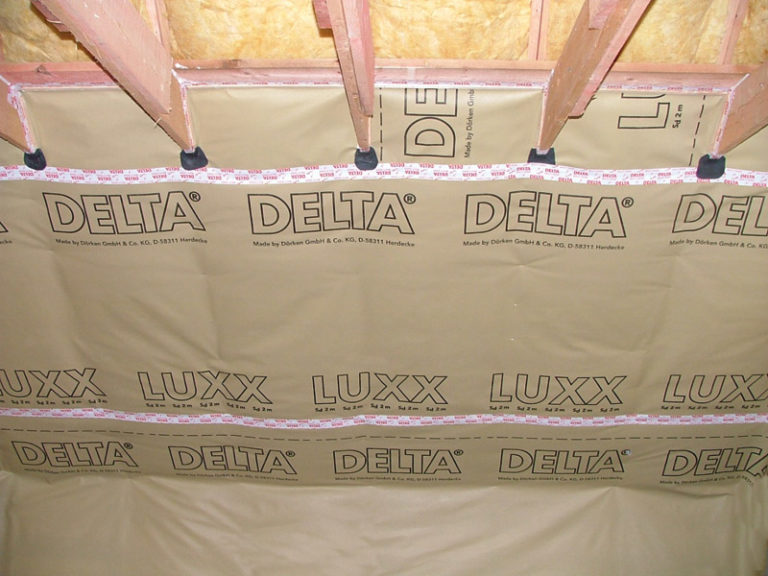

Installation of DELTA®-LUXX

Overlaps of the DELTA®-LUXX draught and vapour barrier are sealed with DELTA®-MULTI BAND . The DELTA®-TIXX cartridge adhesive or the DELTA®-LIQUIXX functional coating may be used to make airtight connections between the sheet and smooth surfaces in gable walls, interior purlins, chimneys, etc. On rough walls, seams are made with DELTA®-KOM BAND . The sheet may be installed either in parallel with or across the rafters. Simply fix it with staples or clout nails. Fastening points must be covered with adhesive tape or contact bars.

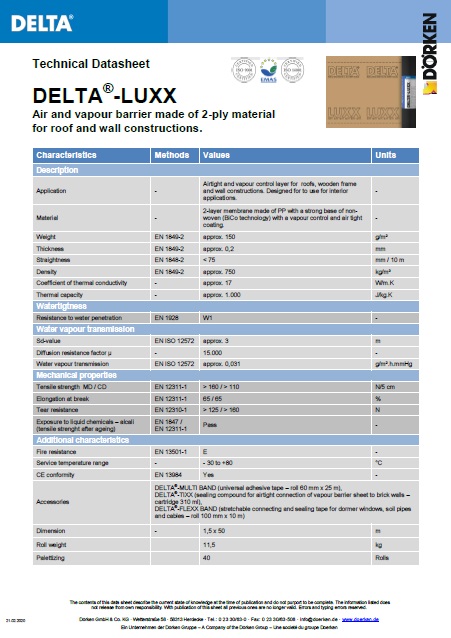

Technical data: DELTA®-LUXX

Material	Tear-resistant membrane made of PP non-woven fabric and a vapour retarding coating..
Application	Air and vapor control layer for all pitched roof and timber frames constructions
Fire resistance	Class E, EN 13501-1
Tear strength	approx. 140/110 N/5 cm,
Sd value	approx. 2 m,
Service Temperature range	-40 °C to +80 °C
Weight	approx. 150 g/m²
Roll weight	approx. 11.5 kg
Roll size	50 m x 1,50 m (40 rolls / pallet)
