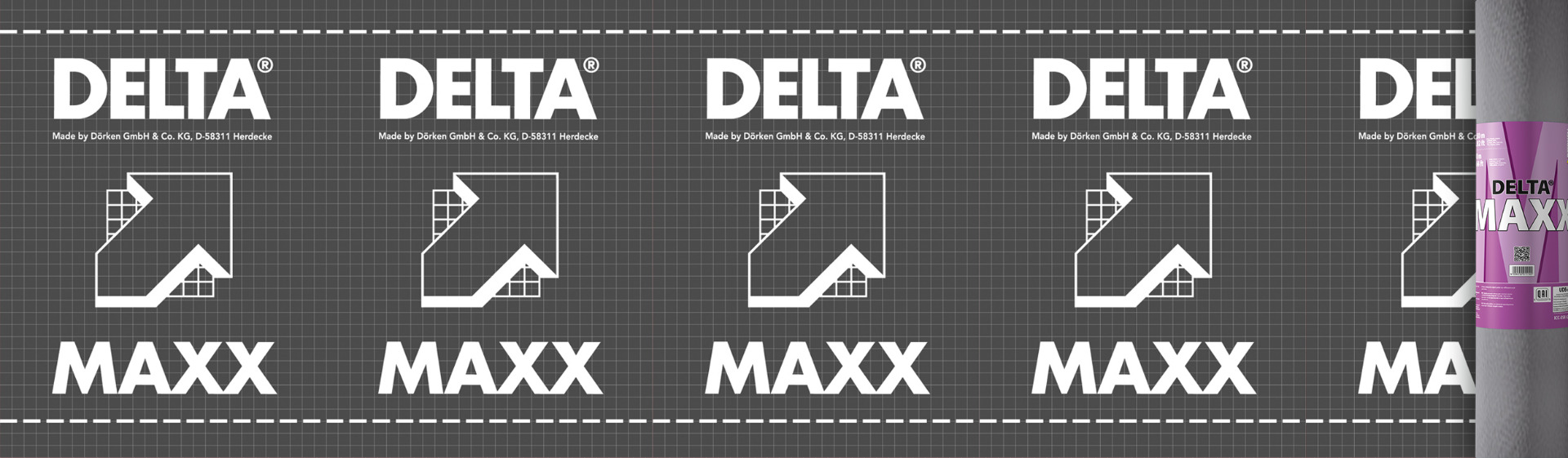

DELTA®-MAXX

Particularly robust. Flame-retardant. Absolutely waterproof

DELTA®-MAXX is Germany’s most popular breathable sarking sheet for fully insulated pitched roofs. 15 years of proven reliability.

Belonging to fire classification B as per EN 13501-1, the sarking sheet is certified flame-retardant, guarantees high step-through safety when ladders are used on battens (certified fall-through safety), and is highly tear-resistant and absolutely waterproof.

Next to DELTA®-MAXX X, DELTA®-MAXX PLUS energy-saver membrane, and DELTA®-MAXX WD, DELTA®-MAXX is the only sarking sheet to feature a moisture-retaining surface. DELTA®-MAXX is particularly safe because of its high permeability to vapour. The ‘moisture-retaining surface’ on the underside safely absorbs moisture even in extreme situations, gradually releasing it outward later on. The Sd value of c. 0.15m guarantees that moisture will be conveyed away safely.

DELTA®-MAXX
Overview of the most important advantages

Unique membrane technology

Waterproof

Windproof

Breathable

Extreme flexible

Higher UV protection

Warranty

Stores moisture from the interior

Higher temperature resistance

Secure against driving rain

Long-term protection against aging

Foot fall proof

DELTA®- Bico technology

Flame retardant

Made in Germany

https://www.youtube.com/watch?v=4BW54sMP7fU

Installation of DELTA®-MAXX

High tear resistance means maximum safety when ladders are used on battens. Unrolling the sheet is quick and precise because of its high strength lengthwise and crosswise. Easy to lay out because of the smooth spunbond on the underside. The checker structure embossed on the upper face simplifies laying by facilitating straight edges when cutting.

Technical data: DELTA®-MAXX

Material	Moisture storage non-woven polyester fleece with a waterproof and vapor-permeable PU coating and sealing self-adhesive edge.
ZVDH	Class UDB-A / USB-A (highest class)
Fire resistance	Class B-s1,d2 , EN 13501-1, B 1 rating (DIN 4102)
Tear strength	approx. 450/300 N/5 cm, EN 12311-1 + 2
Water tightness	Class W 1, EN 13859-1 + 2
Sd value	approx. 0,15 m, EN ISO 12572
Service Temperature range	-40 °C to +80 °C
Short-term maximum temperature load of the material	+120 °C
Resistance against driving rain	Pass in the driving-rain test for waterproofing and soft sheathing, TU Berlin
Increased requirement for aging	Passed, ZVDH product data sheet table 1
Weight	approx. 190 g/m²
Roll weight	approx. 14 kg
Roll size	50 m x 1,50 m
