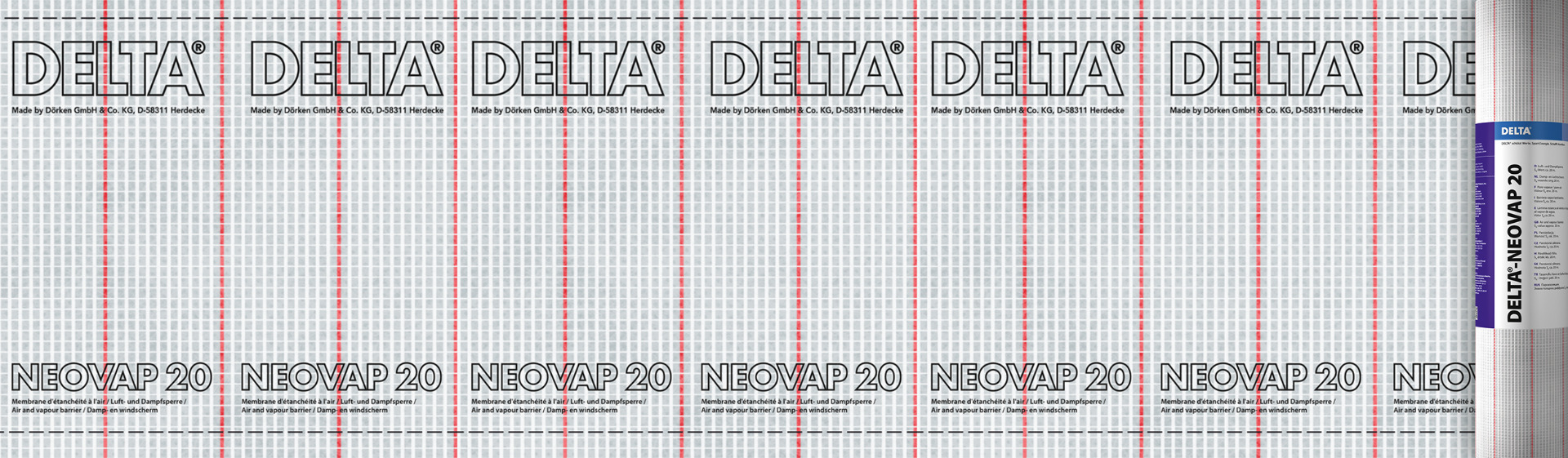

DELTA®-NEOVAP 20

Tear-resistant vapour barrier for greater safety under the roof and for timber frame structures. Grid-reinforced, translucent, easy to lay.

Thanks to its Sd value of c. 20m, DELTA®-NEOVAP 20 reduces the diffusion flow from inside far enough to comply with the condensation control requirements in winter. DELTA®-NEOVAP 20 is translucent and thus easy to install. Moreover, it may be combined with all DELTA® sarking sheets..

DELTA®-NEOVAP 20

Overview of the most important advantages

Grid reinforced

Waterproof

Airtight

Long-term protection against aging

Made in Germany

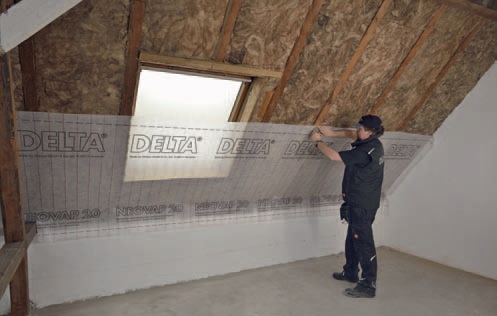

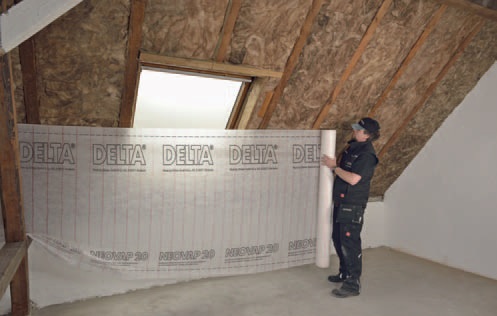

Installation of DELTA®-NEOVAP 20

DELTA®-NEOVAP 20 may be installed in vented and unvented pitched roofs either in parallel with or across the rafters. The sheet may be fixed simply and economically with staples or clout nails. DELTA®-MULTI BAND serves to seal overlaps of DELTA®-NEOVAP 20. The DELTA®-TIXX cartridge adhesive is used to make airtight connections between the sheet and smooth surfaces in gable walls, interior purlins, chimneys, etc. On rough walls, seams are made with DELTA®-KOM BAND plus contact bars or with DELTA®-LIQUIXX .

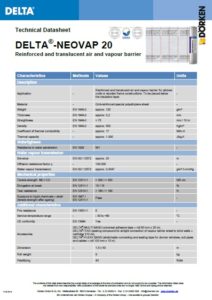

Technical data: DELTA®-NEOVAP 20

Material	Grid-reinforced special polyethylene sheet.
Application	Air and vapor control layer for pitched roofs, walls and floors
Fire resistance	Class E, EN 13501-1
Tear strength	approx. 300 N/5 cm,
Water tightness	Class W 1, EN 1928
Sd value	approx. 20 m,
Service Temperature range	-40 °C to +80 °C
Weight	approx. 120 g/m²
Roll weight	approx. 9 kg
Roll size	50 m x 1,50 m (40 rolls / pallet)
