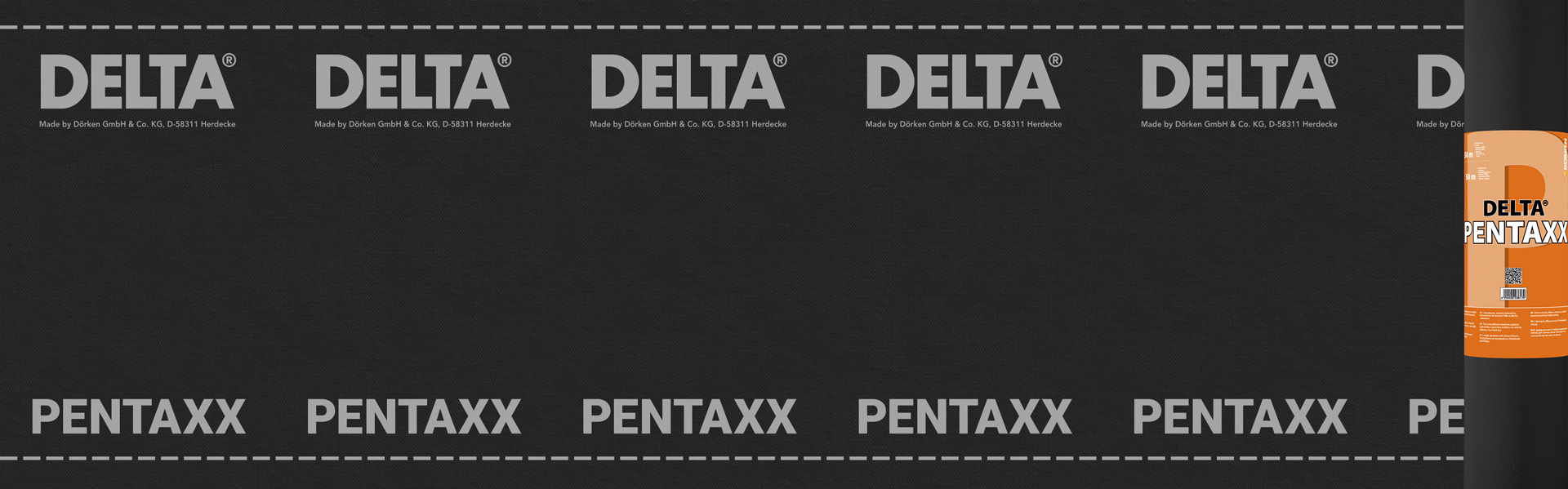

DELTA®-PENTAXX

The new highly UV-stabilised underlay and formwork sheet.

The DELTA®-PENTAXX family can easily withstand UV radiation for up to four months.

Up to four months UV resistance for more flexibility on site.
20-year functional warranty (in accordance with DELTA ® warranty conditions).

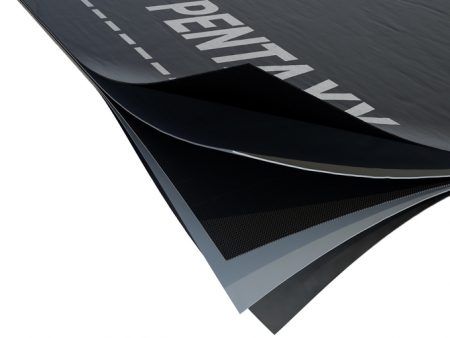

The robust materiality thanks to the 5-layer construction simplifies handling and ensures uncomplicated, smooth processing.
The vapour-permeable and water-repellent multilayer functional films reliably dissipate moisture from the inside and ensure protection against external weather influences. This ensures a durable and safe roof construction for processors and builders.

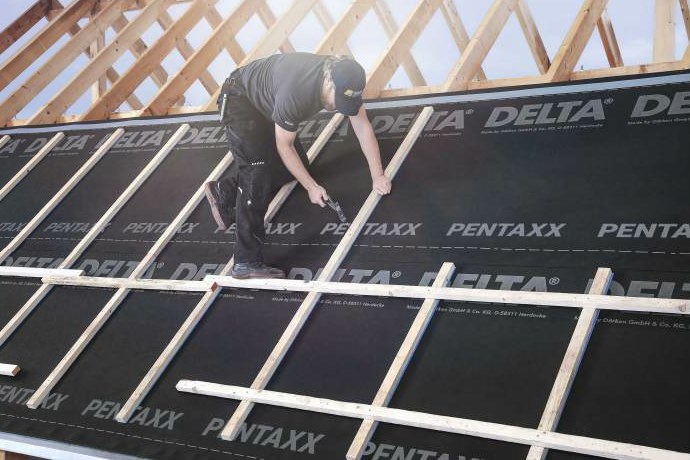

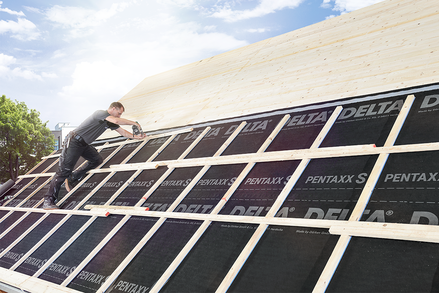

Versatile use as formwork, underlay and sarking membrane thanks to the breathable, heavy-duty structure. Processors benefit from a uniform system from a single source.

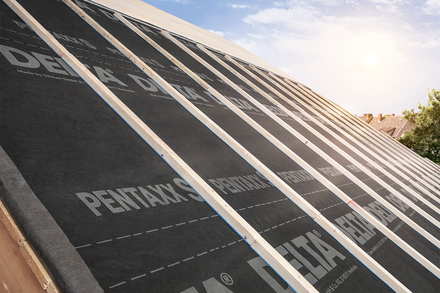

Harmful environmental and weather influences affect people and building products in equal measure. Steep roof membranes are exposed to UV radiation during the construction phase. If the exposure becomes too high, they can become brittle and lose their function as a second water-bearing layer.

The robust construction of the system enables easy handling, smooth processing and not only protects against driving rain, but also ensures that cold outside air cannot penetrate the construction and reduce the efficiency of the insulation. That is quality “Made in Germany”. Even moisture cannot harm the insulation, because DELTA ® -PENTAXX breathes. We give you this quality in writing: With our 20-year functional guarantee*.

Intelligent DELTA® technologiesfor a UV-stable, durable and energetic roof

All DELTA ® -PENTAXX formwork and underlays are based on intelligent technologies. They are the result of years of experience, continuous development and the highest quality standards. It is our aim to offer the best possible solution for the respective requirement. In the field of roof construction in particular, the requirements today are extremely complex. Intelligent answers are required.

Active-Mambrane-Sytem

The intelligent DELTA® membrane technology protects the roof like a skin.
This membrane technology ensures that the entire roof construction remains permanently dry. It protects the roof like a second skin.

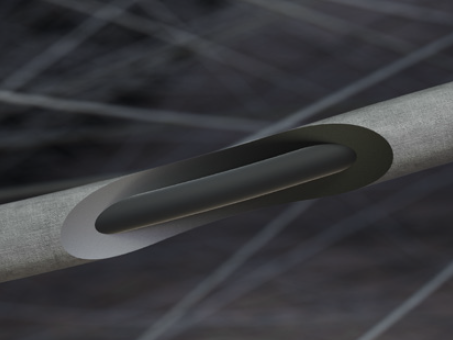

DELTA®-BiCo Technology

The cloth layers for our DELTA® sarking sheets are made with the latest BiCo core-mantle technology. Cloth backings ensure the mechanical stability – or tear strength – of roofing sheets. Depending on the manufacturing technology employed and the square weight of the cloth, sarking sheets may be made ‘fall-though safe’, for example.

DELTA®-PENTAXX
Overview of the most important advantages

Unique membrane technology

Waterproof

Windproof

Breathable

UV protection

Long-term protection against aging

Robust

DELTA®- Bico technology

Secure against driving rain

Made in Germany

DELTA®-PENTAXX

https://www.doerken.com/media/videos/PENTAXX-UV-Schutz-EN.mp4

Technical data: DELTA®-PENTAXX

Material	5-layer, pitched roof membrane made of a tear-resistant, vapour permeable PP spun non-woven fabric / film combination.
ZVDH	Class UDB-A / USB-A (highest class)
Fire resistance	Class E, EN 13501-1
Tear strength	approx. 360/250 N/5 cm, EN 12311-1 + 2
Water tightness	Class W 1, EN 13859-1 + 2
Sd value	approx. 0,15 m, EN ISO 12572
Service Temperature range	-40 °C to +80 °C
Short-term maximum temperature load of the material	+100 °C
Resistance against driving rain	Pass in the driving-rain test for waterproofing and soft sheathing, TU Berlin
Increased requirement for aging	Passed, ZVDH product data sheet table 1
Weight	approx. 200 g/m²
Roll weight	approx. 15 kg
Roll size	50 m x 1,50 m
