DELTA®-REFLEX

Increases heat protection by up to 10%. 50% heat reflection. Stops draughts and vapour 100%
DELTA®-REFLEX reflects 50% heat (certified by the Fraunhofer Institute of Freiburg). It is suitable for all roof and wall constructions. Its special scrim reinforcement makes this draught and vapour barrier highly tenacious (450/400N/5cm. Expertly installed, it complies with the requirements of DIN 4108.

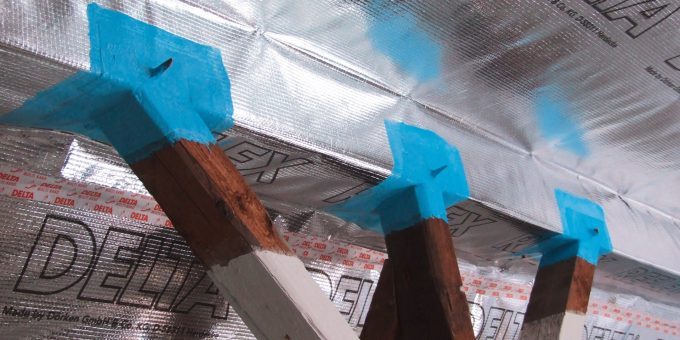

DELTA®-REFLEX absorbs up to 99% of the ambient electromagnetic radiation and constitutes a perfect draught and vapour barrier even at overlaps and seams when installed with the system accessories DELTA®-MULTI BAND, DELTA®-TIXX, DELTA®-FLEXX BAND, DELTA®-POLY-BAND; DELTA®-LIQUIXX and DELTA®-KOM BAND.
The Sd value of DELTA®-REFLEX is c. 150m.

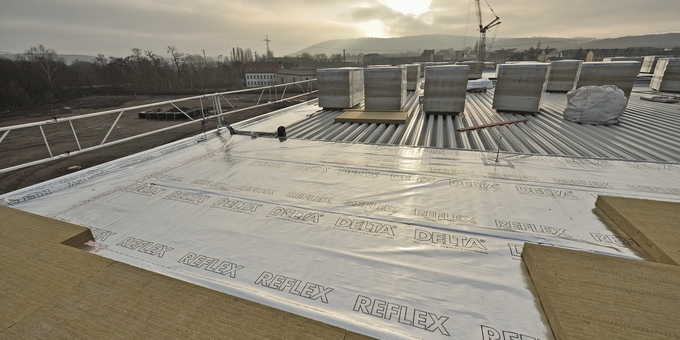

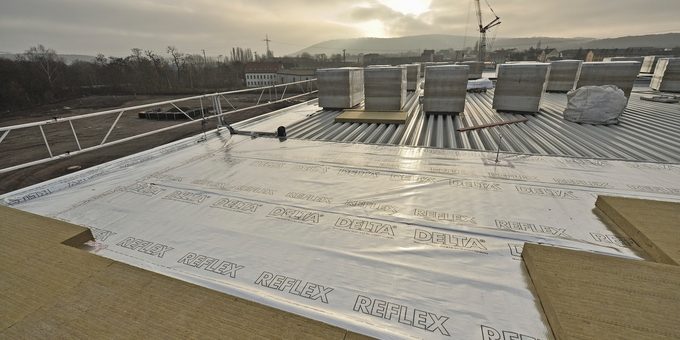

This high value lastingly eliminates any chance of the heat insulation and the roof structure being harmed by diffusion processes. Also available in a sheet width of 3m: ideal for use in light industrial roofs with substructures consisting either of aerated concrete or trapezoidal metal sheets.

DELTA®-REFLEX
Overview of the most important advantages

Grid reinforced

Waterproof

Airtight

Ideal for exreme conditions

Long-term protection against aging

Protection against e-smog

Made in Germany

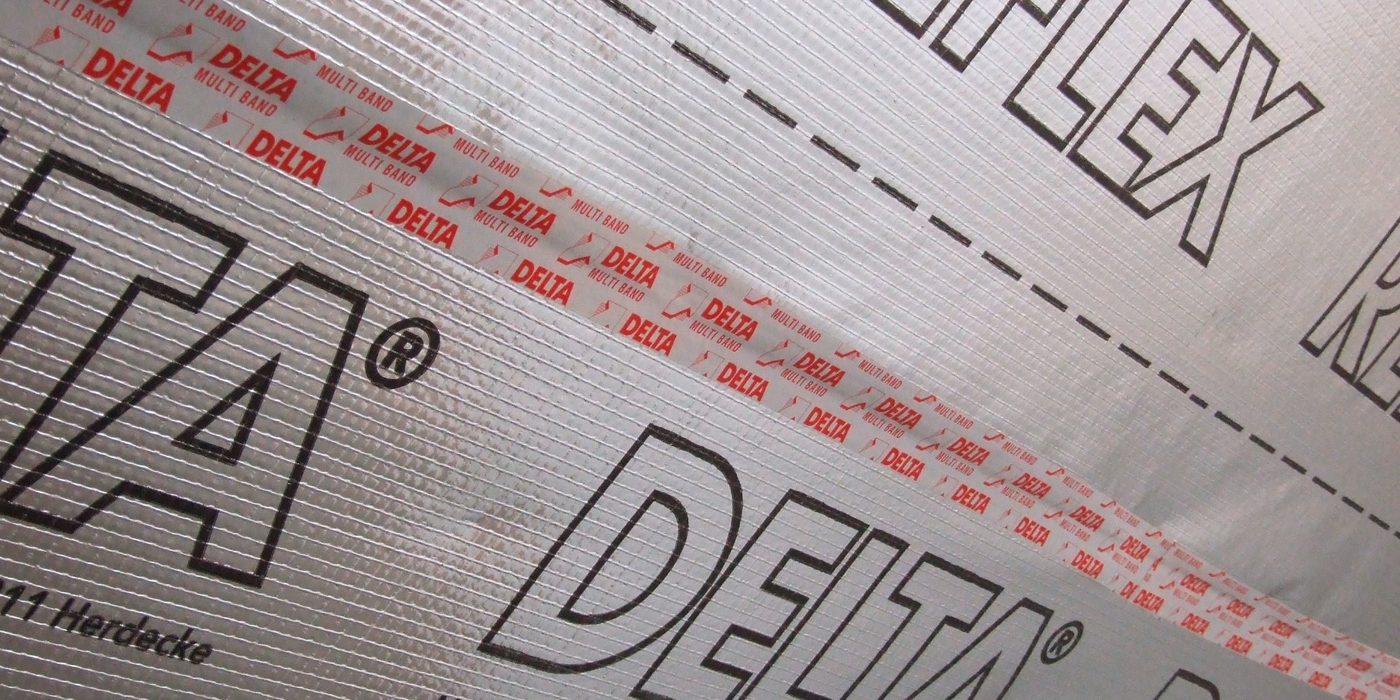

Installation of DELTA®-REFLEX

Its weight of c. 150g per square metre makes installation particularly easy. May be rolled off quickly in perfect alignment without buckling or pulling the sheet out of shape. The matte surface prevents irritating dazzle.

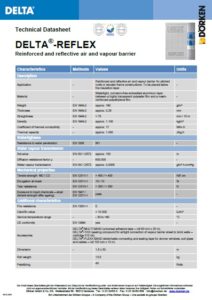

Technical data: DELTA®-REFLEX

Material	A watertight, corrosion-free embedded aluminium layer between a highly transparent polyester film and a mesh-reinforced polyethylene film.
Application	Air and vapor barrier with a high safety reserve in the roof, wall and ceiling.
Fire resistance	B 1 rating (DIN 4102), Class E, EN 13501-1
Tear strength	approx. 450/400 N/5 cm, EN 12311-1 + 2
Sd value	approx. 150 m,
Service Temperature range	-40 °C to +80 °C
Weight	approx. 180 g/m²
Roll weight	approx. 13.5 kg
Roll size / packing	50 m x 1,50 m (40 rolls/ pallet) 24 m x 3.00 m (40 rolls/ pallet)
