Overview
- Excellent protection from falling objects
- Thermal insulation for cold surface
- Improves uneven floor finishes of up to 3.1 mm

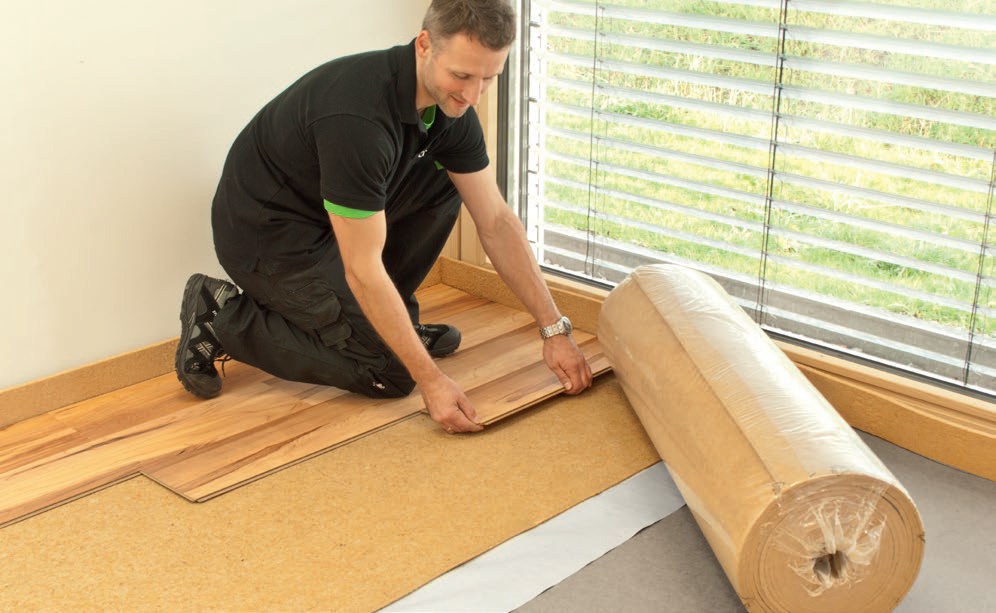

- Quick and simple to install, easy to cut
- Packed in handy rolls
- Contributes to a healthier internal air quality
- Particularly environmentally friendly
Packaging
STEICOunderfloor flex
| Size [mm] | Thickness [mm] | kg/m² | m²/Palett | Rolls/Palett | kg /Palett [kg] |
| 1100*1000 | 5 | 0.65 | 121 | 11 | approx. 100 |
Characteristics
STEICOunderfloor flex
| Edge Design | square edge |
| Bulk density [kg / m³] | ca. 130 |
| Thermal conductivity λ [W / ( m * K )] | 0,042 |
| Water vapour diffusion resistance factor μ | 3 |
| Applied materials | wood fibre, polyolefin fibres, ammonium sulfate |
| Waste code (EAK) | 030105 / 170201, disposal as wood and wood-based material |
Technical values according to CEN/TS 16354
| Thermal resistance [m²K / W] | R | 0,31 |
| Punctual conformability [mm] | PC | 3,1 |
| Water vapour diffusion resistance [m] | SD | 0,02 |
| Compressive strength [kPa] | CS | > 10 |
| Compressive creep resistance [kPa] | CC | > 50 |
| Resistance to impact by large diameter ball [mm] | RLB | > 1,800 |
| Impact sound reduction [dB | ISLAM | 20 |
| Reaction to fire accord. to EN 13501-1 | RTF | Efl |
| Resistance to impact by large diameter ball [mm] | RLB | > 1,800 |
Download
Healthy house requires – healthy floors, healthy floors needs sustainable underlay.
STEICO underfloor flex protect the floors.
- Participates in the circulation of air in the room.
- Does not spread fire. In case of fire, the resulting ash blocks the access of oxygen. When ignited, does not emit toxic gases.
- It has the ability to absorb moisture up to 20% of its weight without loss of heat-insulating properties.
- Protects the lower floors from small leaks. Completely restores all properties after drying.
- It does not slip and can withstand weight up to 20 tons per 1 square meter
- Protects floor locks from creaking and breaking, and also eliminates the unpleasant “spring” effect when walking.
- The roll format is very simple to install, does not crumble, does not break, does not shrink during prolonged use
– The properties of natural coniferous underlay
Innovative natural underfloor roll from STEICO. The material is made from coniferous wood. And they are known for their healing properties. Even our ancestors called the pine a symbol of longevity, eternity and immortality. Its aroma and constantly releasing phytoncides have a beneficial effect on the respiratory system. Using environmentally friendly and hypoallergenic materials, we take care of our health and family healthiness.
The coniferous substrate is open for air circulation in the room. This property allows the residual moisture to dry at the base of the floor and prevents the development of mold or mildew.
Wood fiber is hollow inside, like wool or human hair. It is able to absorb and give off moisture without losing its thermophysical characteristics, leaving the space between the fibers dry.
This is the most valuable and unique ability to absorb and give off moisture, maintains the indoor microclimate, giving off moisture in the dry winter period and binding excessive moisture in the moist sezon
